What is a transform?

A transform is simply a geometric change of an object. There are four types of transforms:

  1. translate (movement horizontally or vertically)
  2. rotate
  3. scale
  4. skew

Transforms can be applied via the transform presentation attribute or CSS.


How do SVG and HTML transforms differ?

Transforms applied to svg elements are different from transforms applied to html elements. Each svg element - every shape, line, group, etc. - has its own coordinate system. When you apply a transform to an SVG element, you’re actually applying it to that element's coordinate system, and relative to the 0,0 point of that system.

This is different from transforms applied to HTML elements, where the transform is applied relative to the center of the HTML element’s bounding box. As a result, applying transforms to SVG elements can sometimes lead to unexpected results for those used to transforms of HTML.


translate

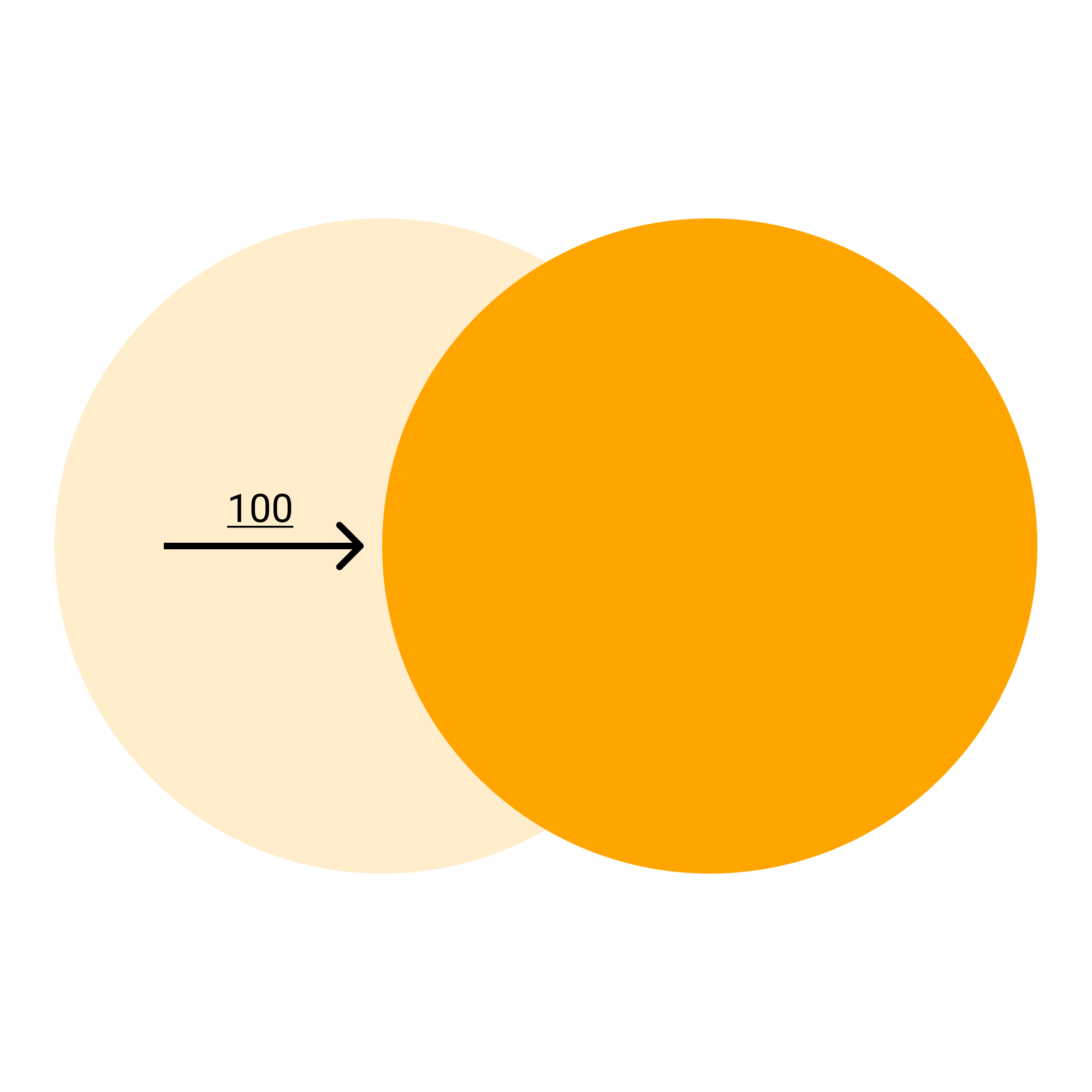

A translate transform simply moves a shape (or group) the specified distance along the x and/or y axis. The value can be positive or negative.

1 2 3 4 <circle cx="250" cy="250" r="250" fill="yellow" transform="translate(100 0)" />



rotate

A rotates transform rotates a shape (or group) the specified number of degrees.

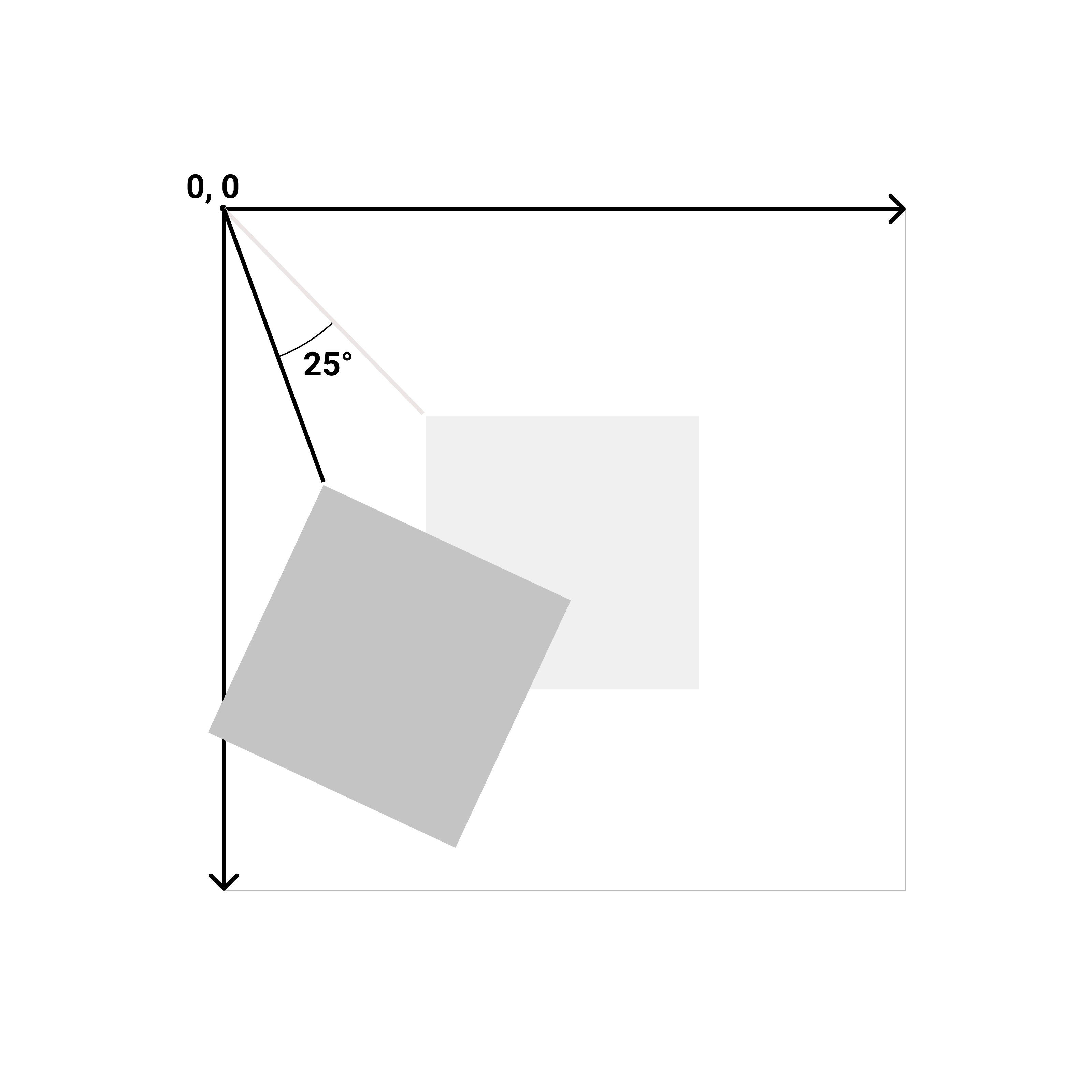

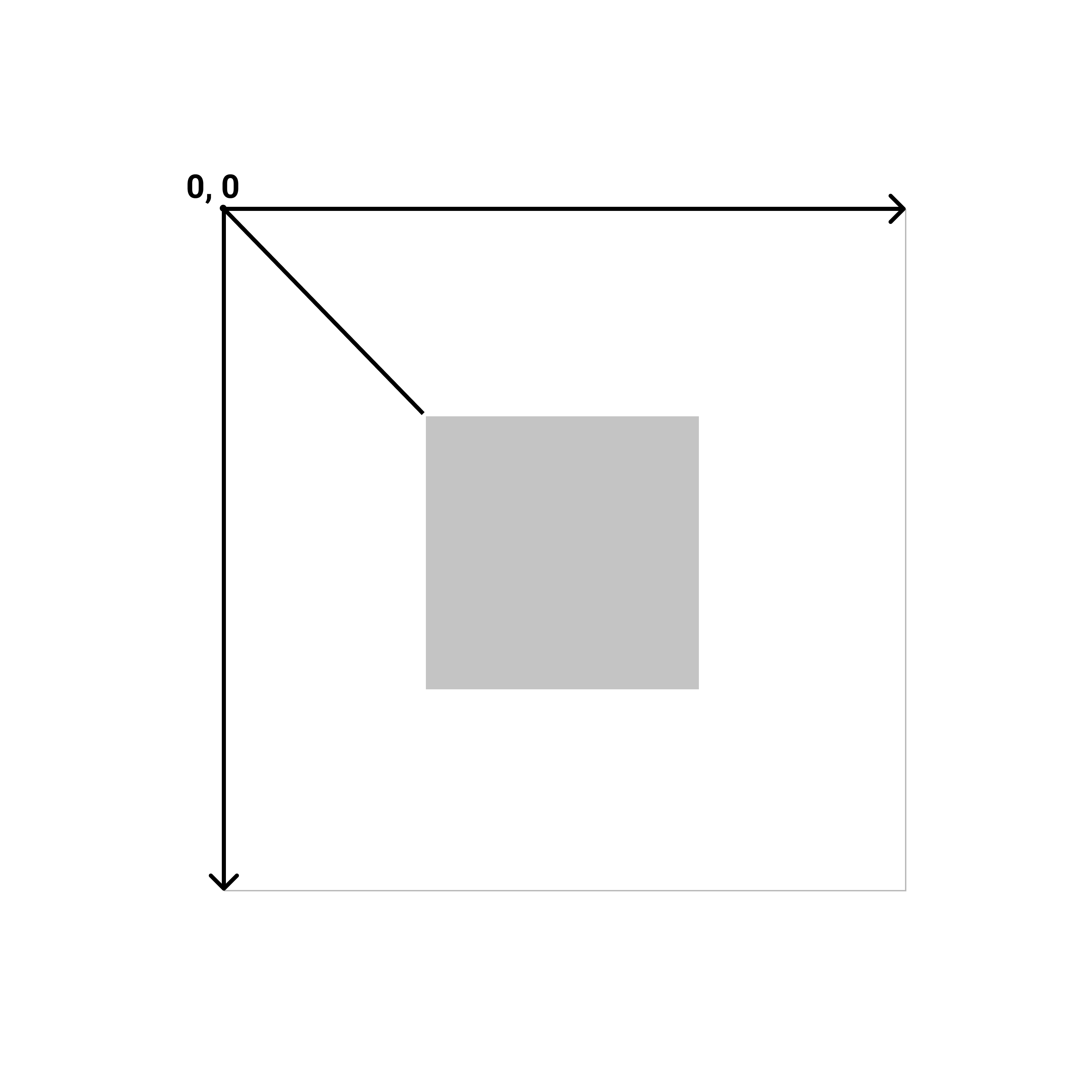

If just one value - i.e. rotate(25), the rotation occurs around the (0,0) point of the element's coordinate system.

1 2 3 4 5 <rect x="200" y="200" width="200" height="200" fill="grey" transform="rotate(25)" />

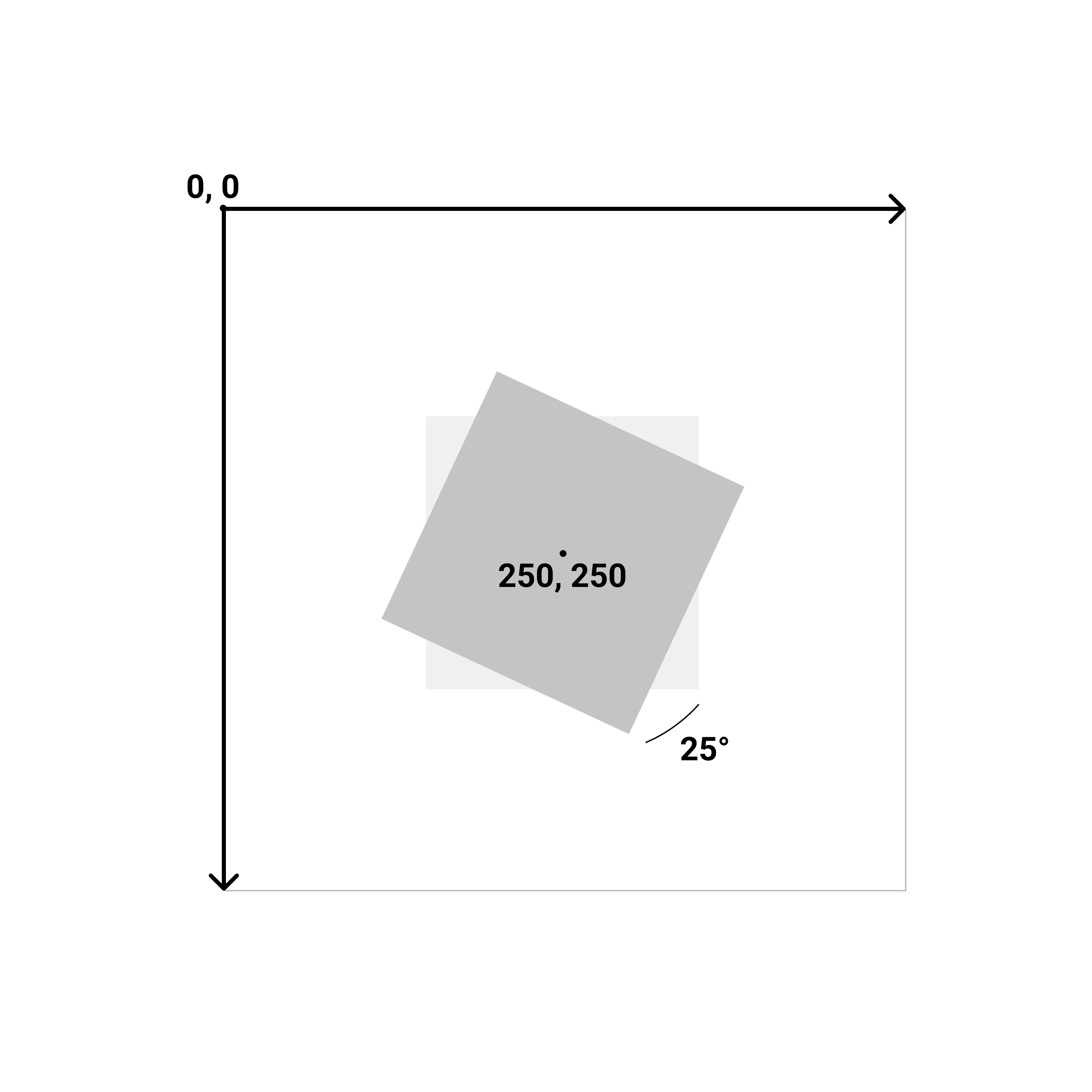

If three values - i.e. rotate(25 250 250), the first number represents the angle (25), and the second and third represent the point around which the rotation occurs. (250 250).



scale

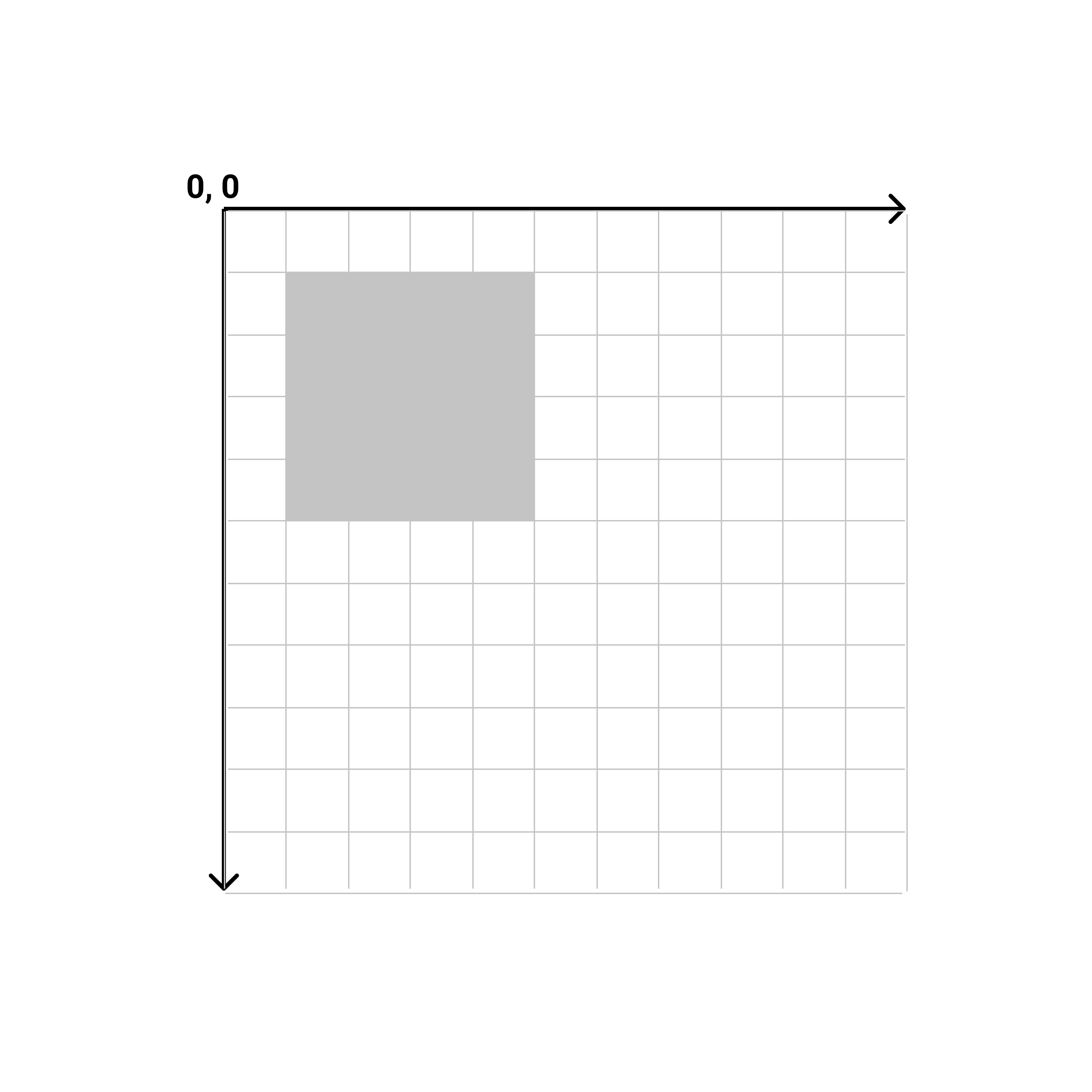

The scale transform scales the entire coordinate system of the element.

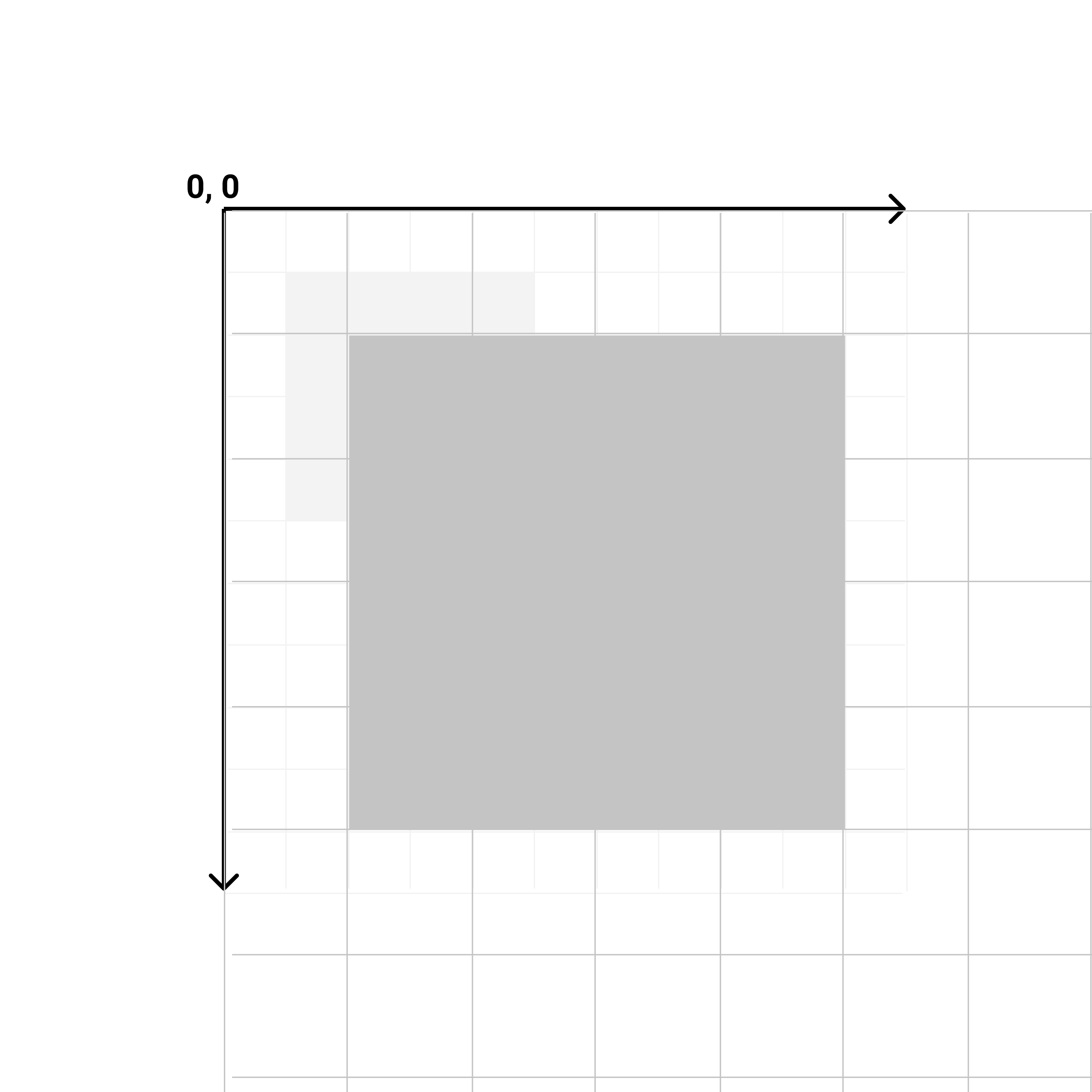

If one value - i.e. scale(2), the element is scaled equally in the x and y dimensions

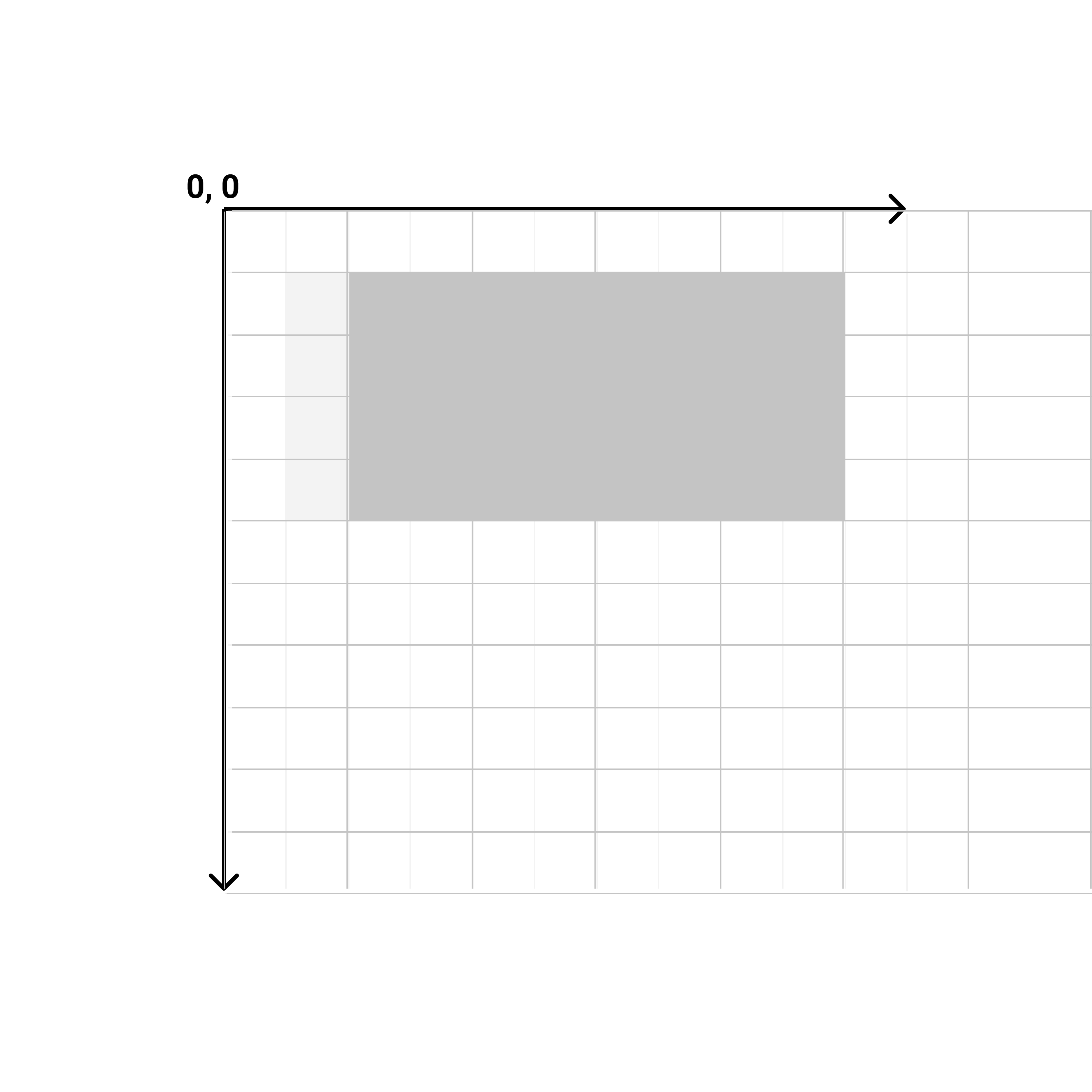

If two values - i.e. scale(2 1), the element is scaled differently in the x and y dimensions.



skewX, skewY

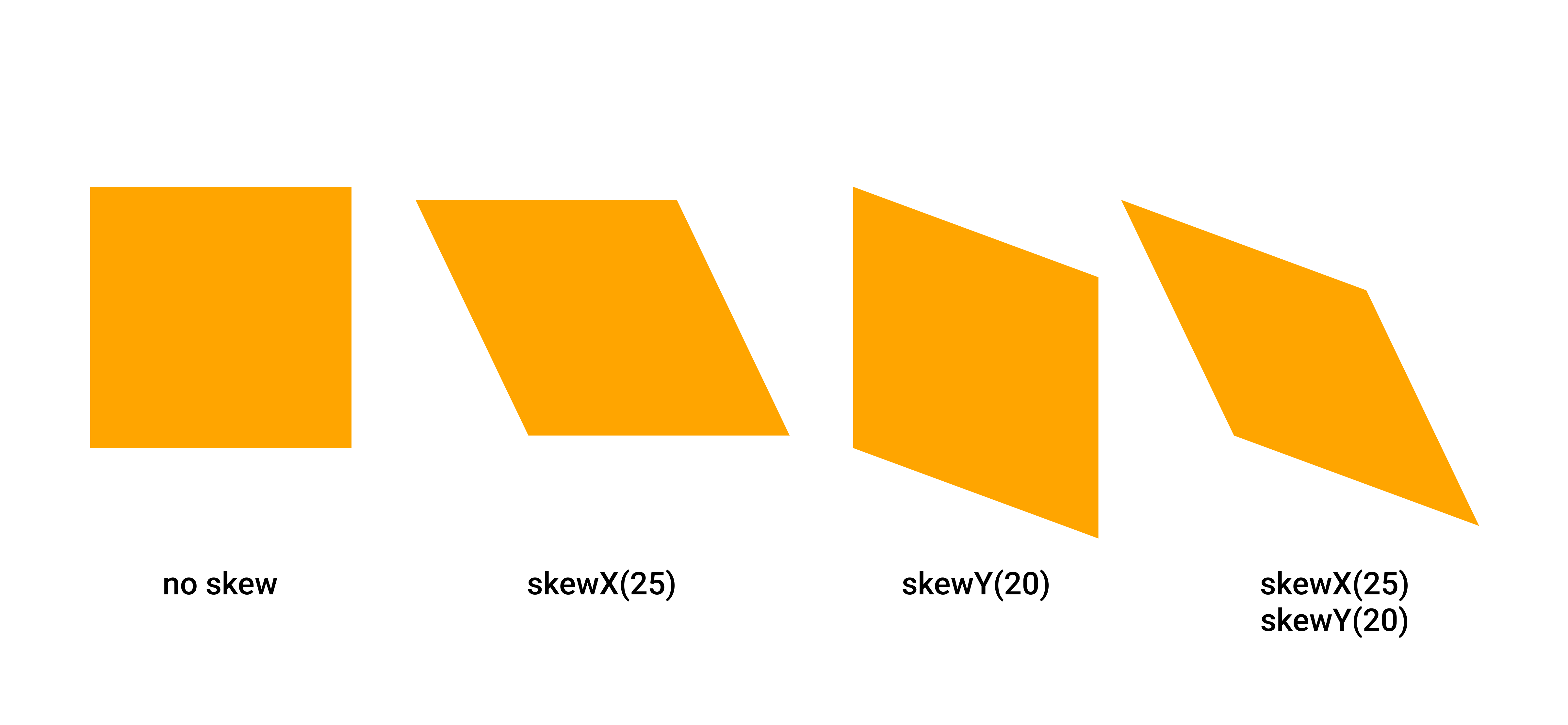

The skew transform “tilts” the object along the x or y axis.


Like all other transforms, the skew transform scales the entire coordinate system of the element

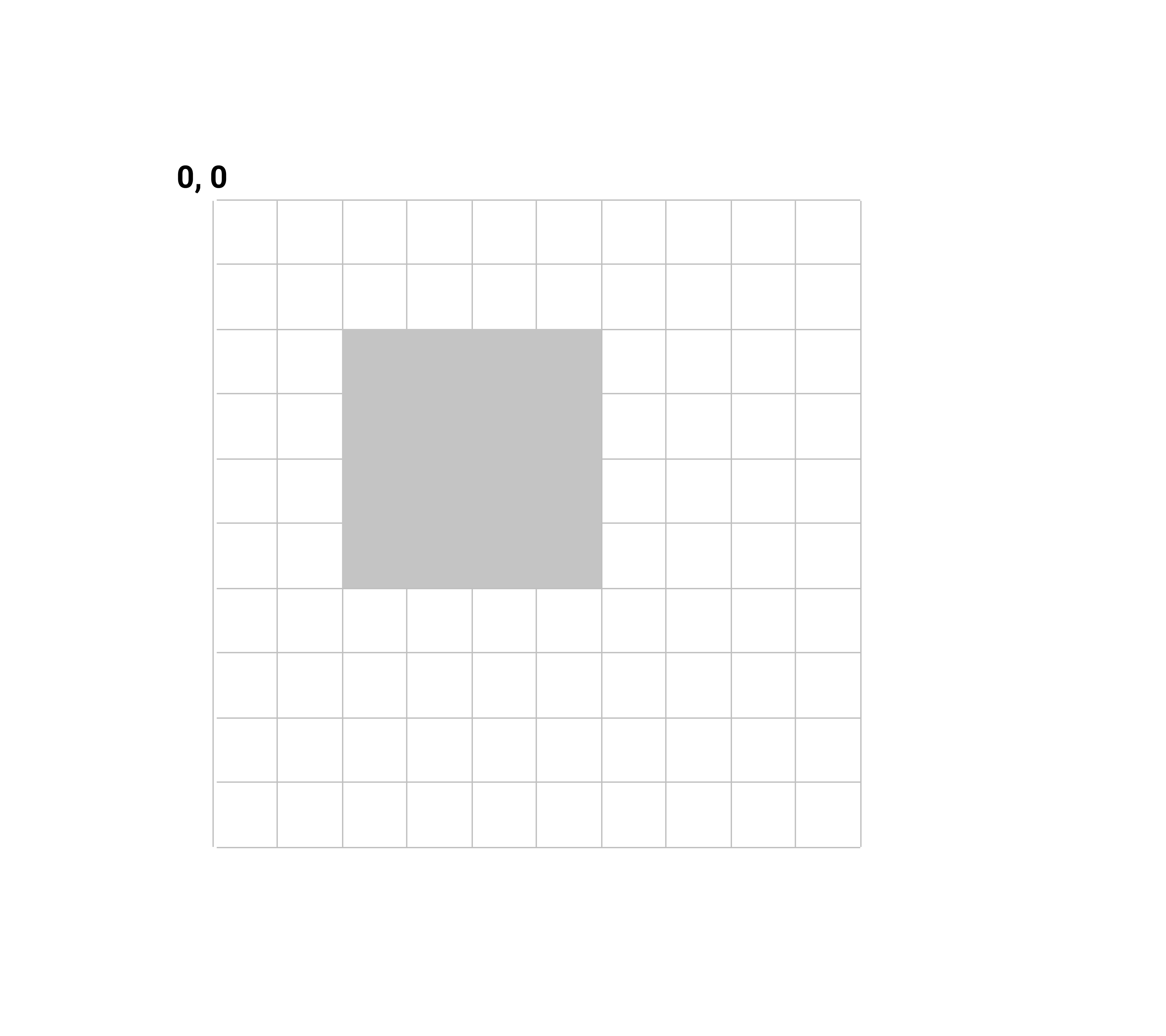

1 2 3 4 <rect x="100" y="100" width="200" height="200" fill="grey"/>
no skew

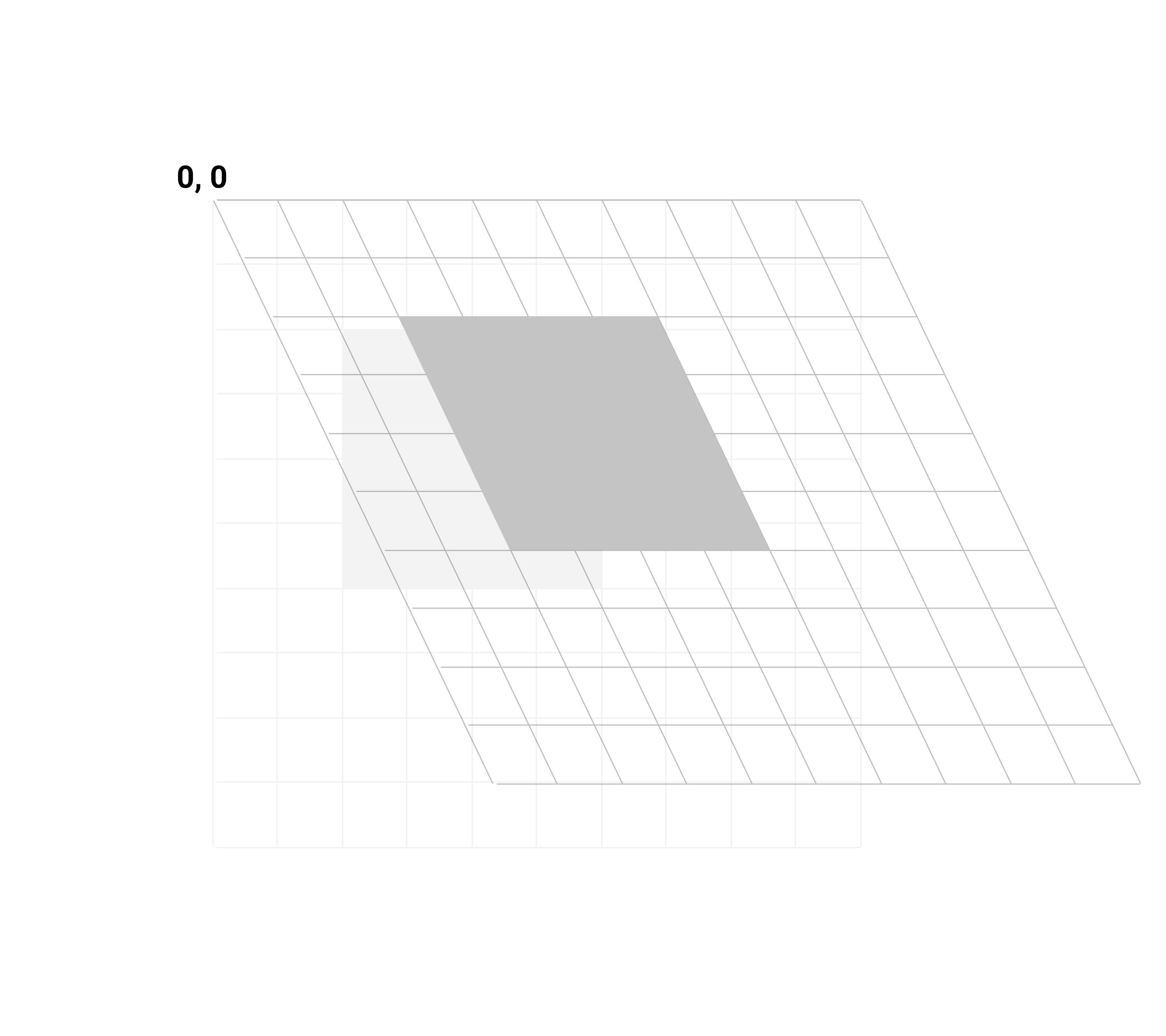

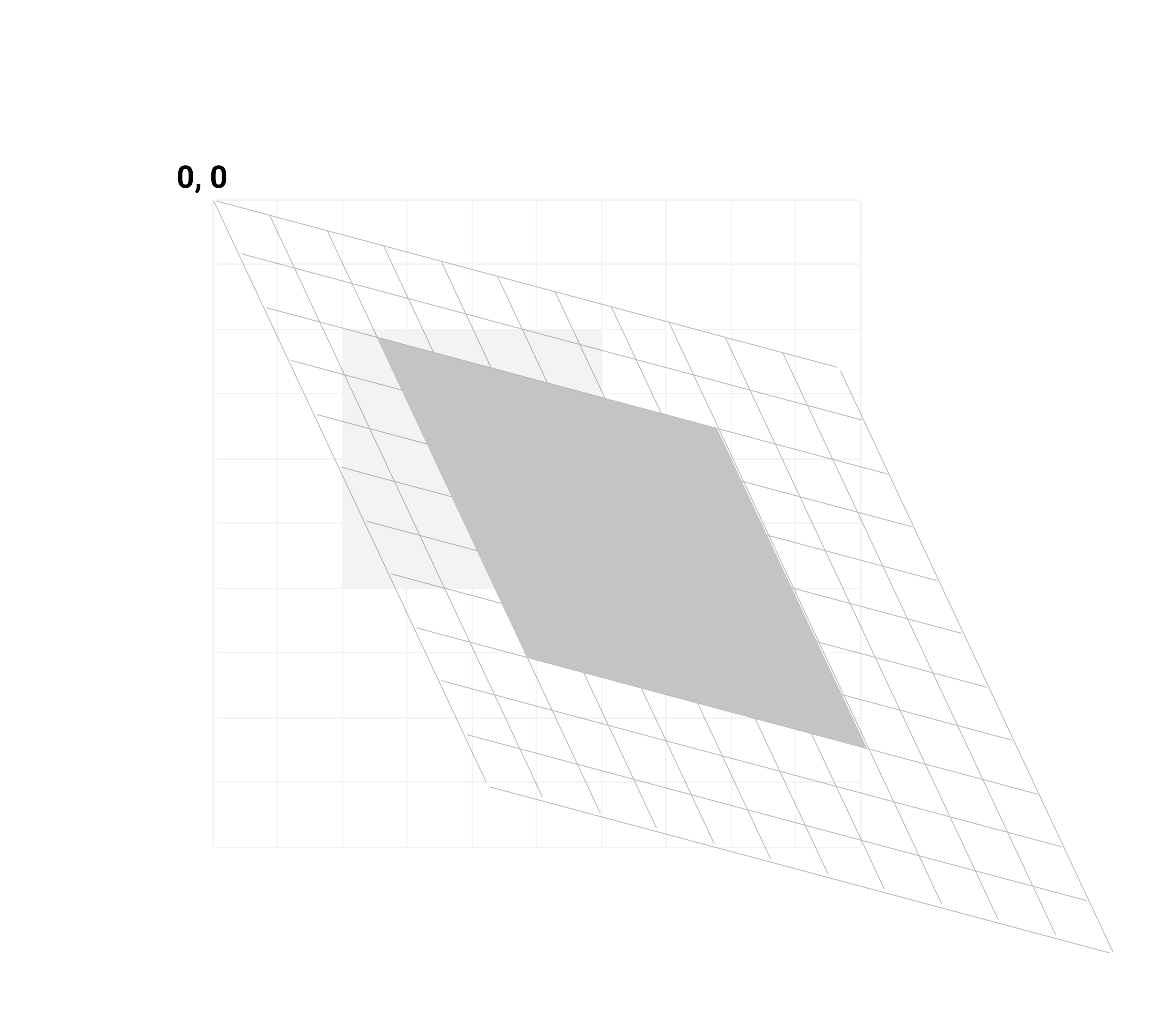

1 2 3 4 5 <rect x="100" y="100" width="200" height="200" fill="grey" transform="skewX(25)"/>
no skew


Check out this interactive example on codepen, where you'll be able to play around with some of the transform presentation attributes


CSS transforms

Like presentation attribute transforms, CSS transforms occur relative to the 0,0 point of the svg element coordinate system, which is different from how CSS transforms are applied to HTML elements.

CSS transforms - translate

Just like the presentation attribute translate transform, the css translate transform simply moves a shape (or group) the specified distance along the x and/or y axis.

1 2 3 4 5 6 7 8 9 10 11 12 13 <style> #my-circle { transform: translate(100 0); } </style> // more code <circle id="my-circle" cx="250" cy="250" r="250" fill="yellow" transform="translate(100 0)" />
no skew


CSS transforms - translateX, translateY

CSS svg translate transforms differ from their svg presentation attribute counterpart in that CSS also offers separate translateX and translateY transforms.

1 2 3 4 5 6 7 <style> #my-circle { transform: translateX(100); } </style> // more code
css translateX example
1 2 3 4 5 6 7 <style> #my-circle { transform: translateY(-100); } </style> // more code

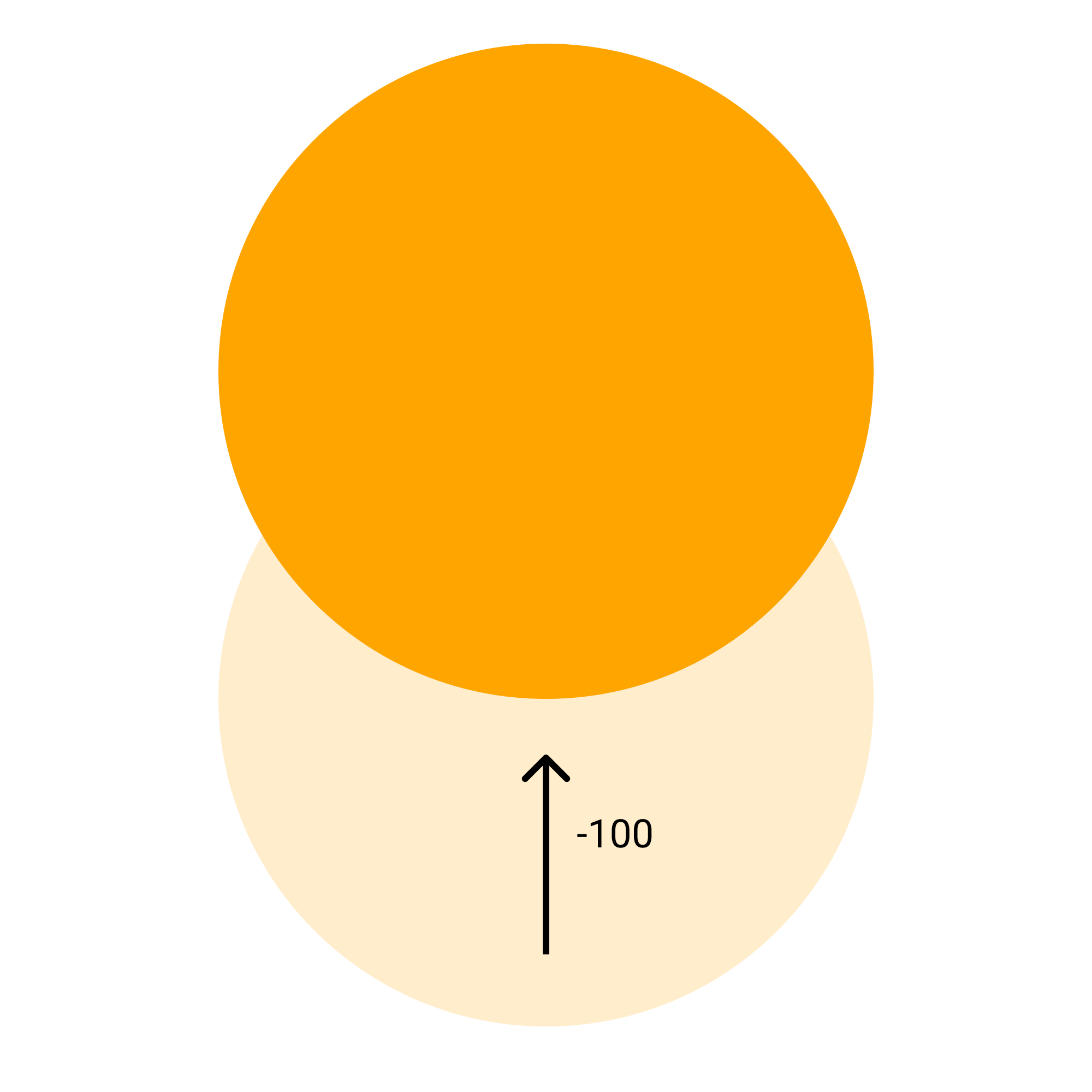

css translateY negative example


CSS transforms - rotate

A rotate transform rotates an element the specified number of degrees. Unlike rotation transforms on HTML elements, SVG CSS rotations occur relative to the 0,0 point of the elements coordinate system. Note: You must include ‘deg’ after the unit number.

1 2 3 4 5 6 7 8 9 <style> #my-square { transform: rotate(25deg); </style> } <rect x="200" y="200" width="200" height="200" fill="grey" />
css translateY negative example


CSS transforms - scale

As with the transform scale presentation attribute, the CSS scale transform scales the entire coordinate system of the element.

If one value - i.e. scale(2), the element is scaled equally in the x and y dimensions

1 2 3 4 5 6 7 8 9 <style> #my-square { transform: scale(2); </style> } <rect x="200" y="200" width="200" height="200" fill="grey" />


As with translate, CSS offers separate scaleX and scaleY transforms

1 2 3 4 5 6 7 <style> #my-square { transform: scaleX(2); </style> } // more code


CSS transforms - skew

1 2 3 4 5 6 7 <style> #my-square { transform: skew(25deg, 15deg); </style> } // more code


You can skew both the x and y axis at the same time, or separately using skewX or skewY.

1 2 3 4 5 6 7 <style> #my-square { transform: skewX(25deg); </style> } // more code


CSS transforms - transform-box

The CSS property transform-box is used to set the coordinate system in which transforms occur. Transforms are usually applied to the entire coordinate system of the object being transformed, as stated earlier.

  • view-box (default value) - the viewport of the SVG is used as the bounding box for the transformation
  • fill-box - the bounding box of the object is used for the transformation

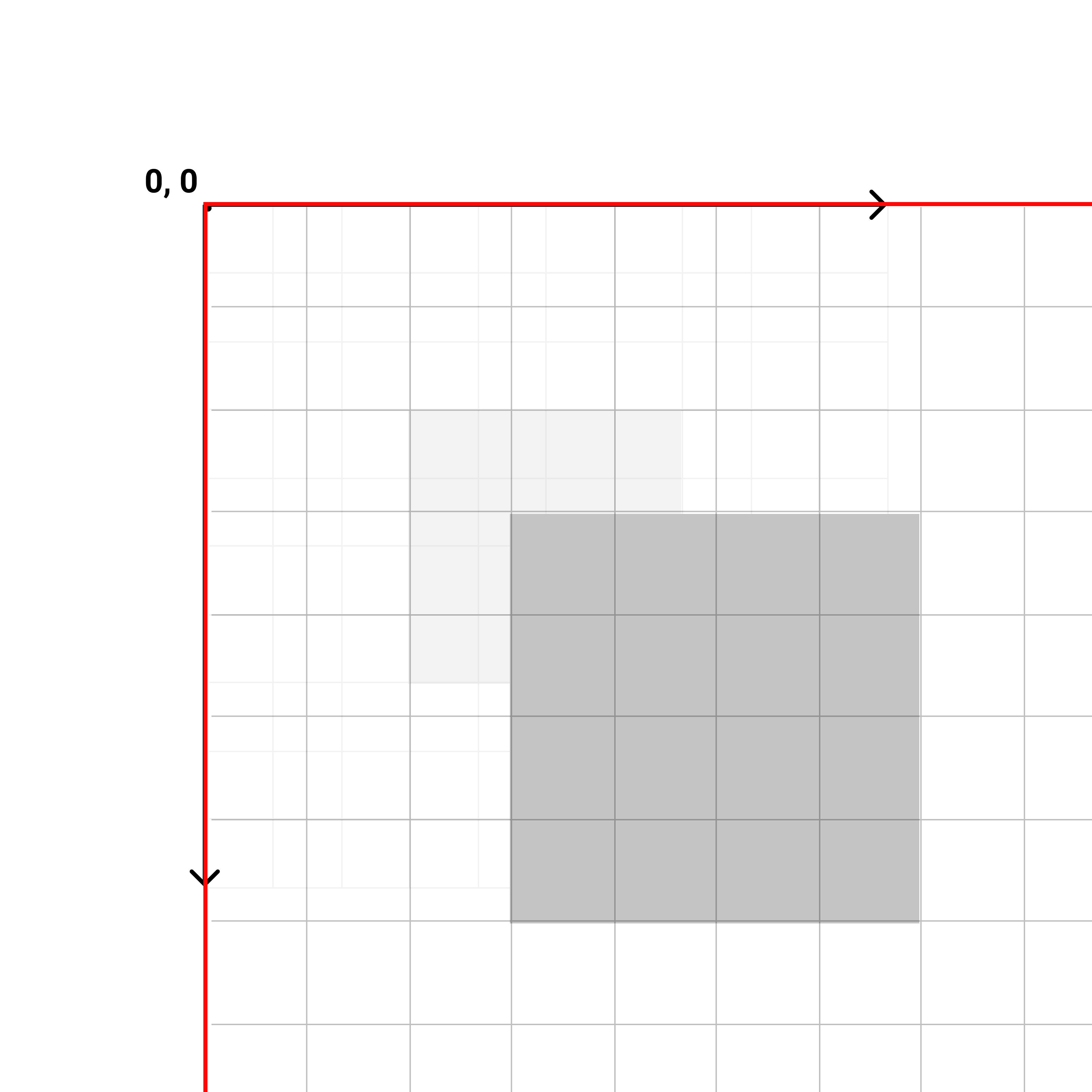

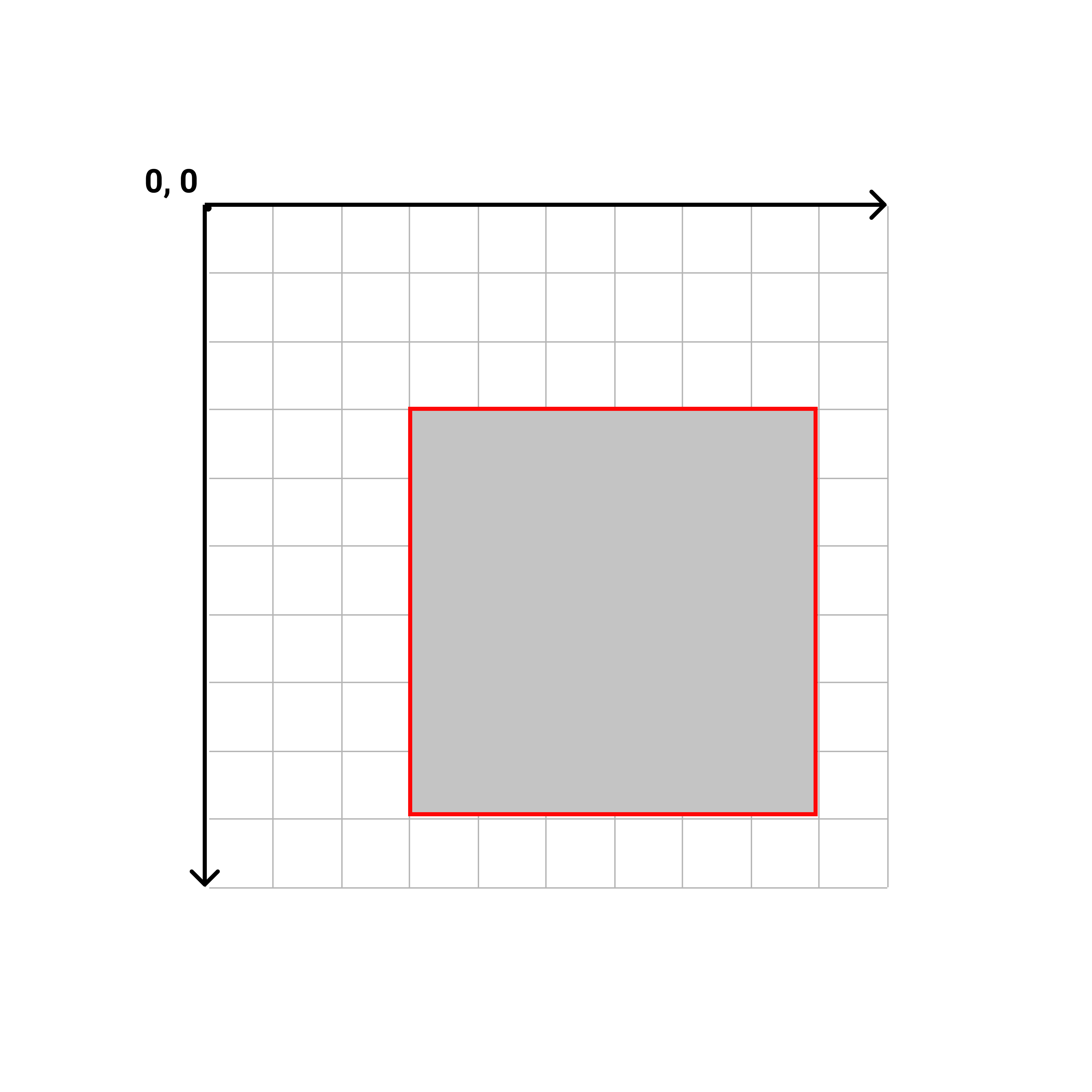

For example, if we wanted to apply a transform scale to this rect element, the rect’s entire coordinate system would be transformed. As a result, the rect is pushed downward and to the right.

1 2 3 4 5 6 7 <style> #my-square { transform: scale(1.5); </style> } // more code

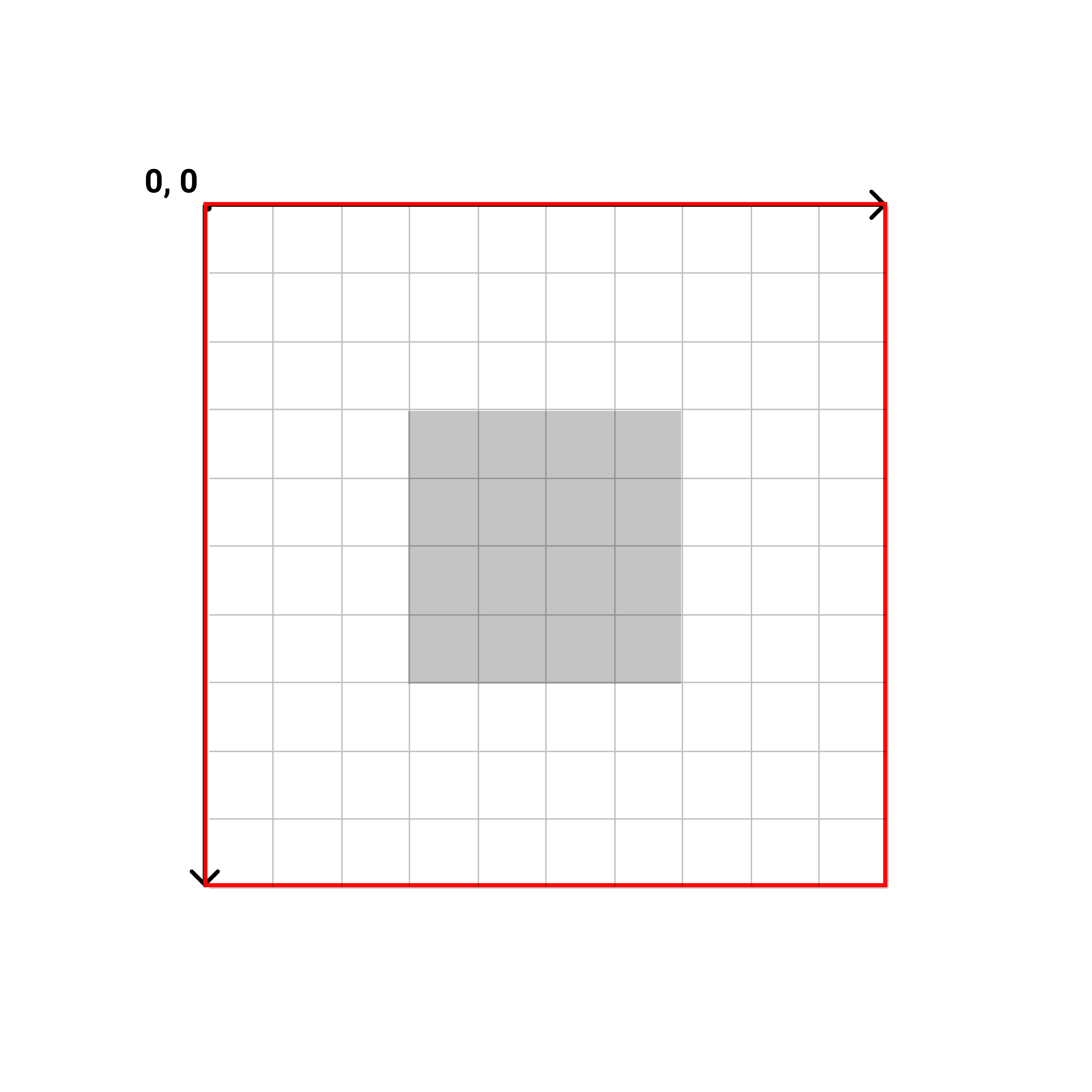

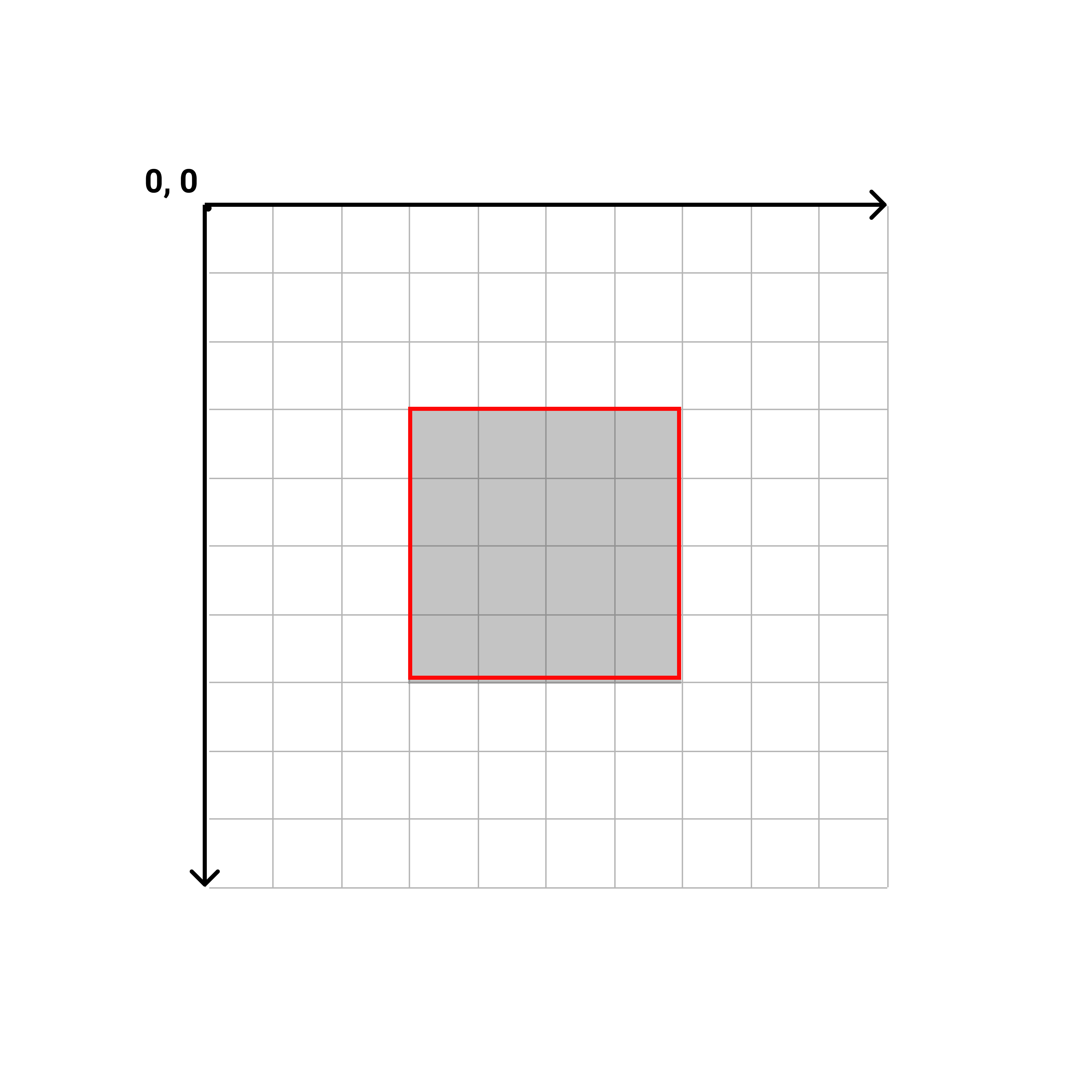

But what if we just want to scale the box in place? We can use set the object’s CSS transform-box property to fill-box. The transform scale will now be applied relative to the object’s bounding box.

1 2 3 4 5 6 7 8 <style> #my-square { transform-box: fill-box; transform: scale(1.5); </style> } // more code

before


after


CSS transforms - transform-origin

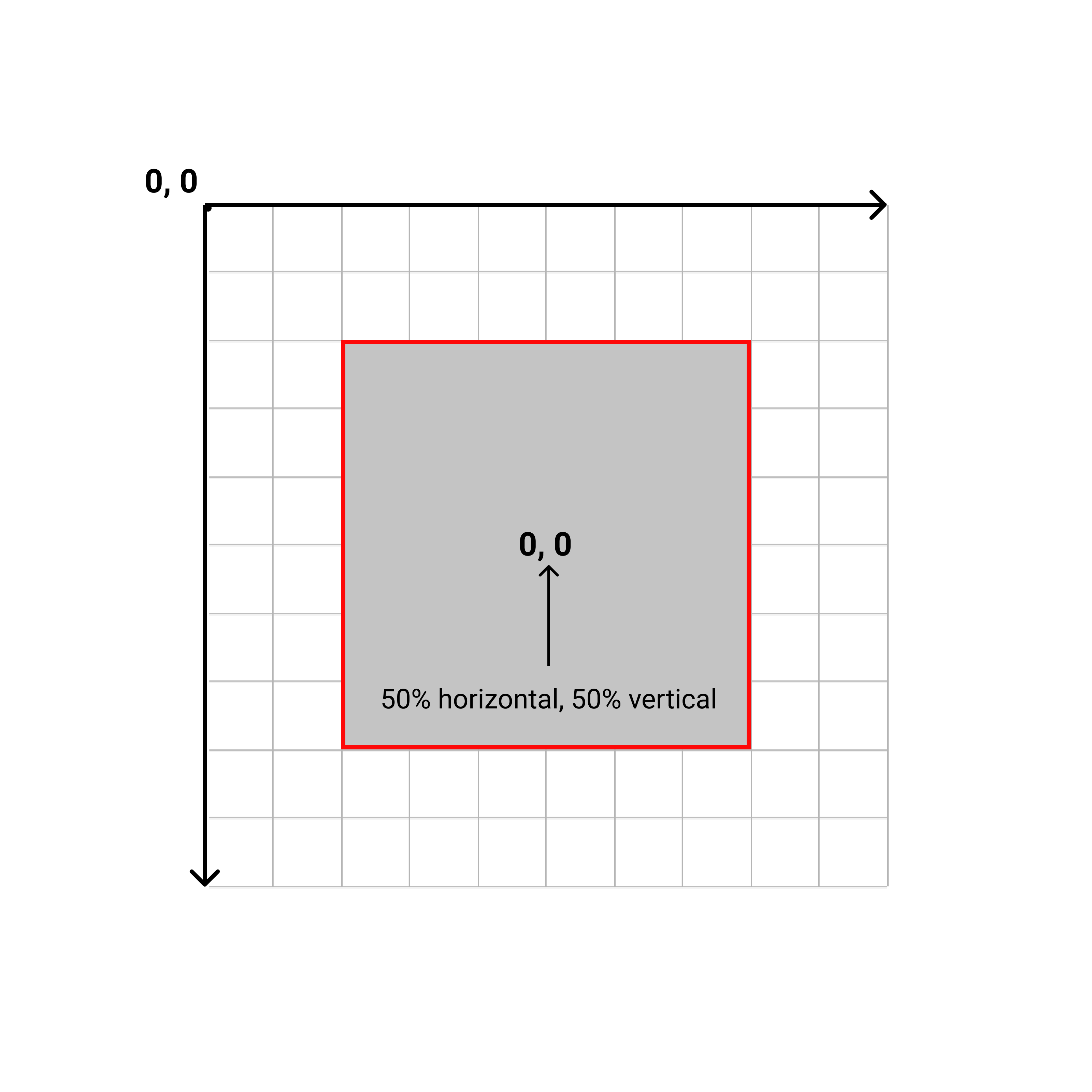

But what if I want the box to scale on all sides, instead of down and to the right? I’d have to change the transform-origin property to move the objects origin from the default location in the upper-left corner to it’s center.

1 2 3 4 5 6 7 8 9 <style> #my-square { transform-box: fill-box; transform-origin: 50% 50%; transform: scale(1.5); } </style> } // more code

before


after



transform order

The order of transforms matters! In the example below the individual transforms (translate, rotate) have the same values, but the results are very different!

  1. translate(200px, 100px) rotate(15deg) (blue square)
  2. rotate(15deg) translate(200px, 100px) (red square)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 <style> .translateFirst { fill: blue; transform: translate(200px, 100px) rotate(15deg); } .rotateFirst { fill: red; transform: rotate(15deg) translate(200px, 100px); } </style> }
