codepen practice pagethe group element
The group element acts as a container for other elements (or groups), similar to a div in html.
groups and presentation attributes
Presentation attributes (fills, strokes, etc.) applied to the group are inherited by the children, as long as that child doesn’t have the same presentation attribute defined.
For example, here I can define the fill, stroke, and stroke-width for the two circles at the group level.
1
2
3
4
<g fill="orange" stroke="red" stroke-width="7">
<rect x="25" y="25" width="200" height="200" />
<rect x="275" y="25" width="200" height="200" />
</g>Child presentation attributes override group presentation attributes. So if one of the child circles has, for example, a fill attribute, the group level fill won’t be applied to that circle
1
2
3
4
<g fill="orange" stroke="red" stroke-width="7">
<rect x="25" y="25" width="200" height="200" />
<rect fill="purple" x="275" y="25" width="200" height="200" />
</g>Note how the group level stroke and stroke-width are still applied to the child element.

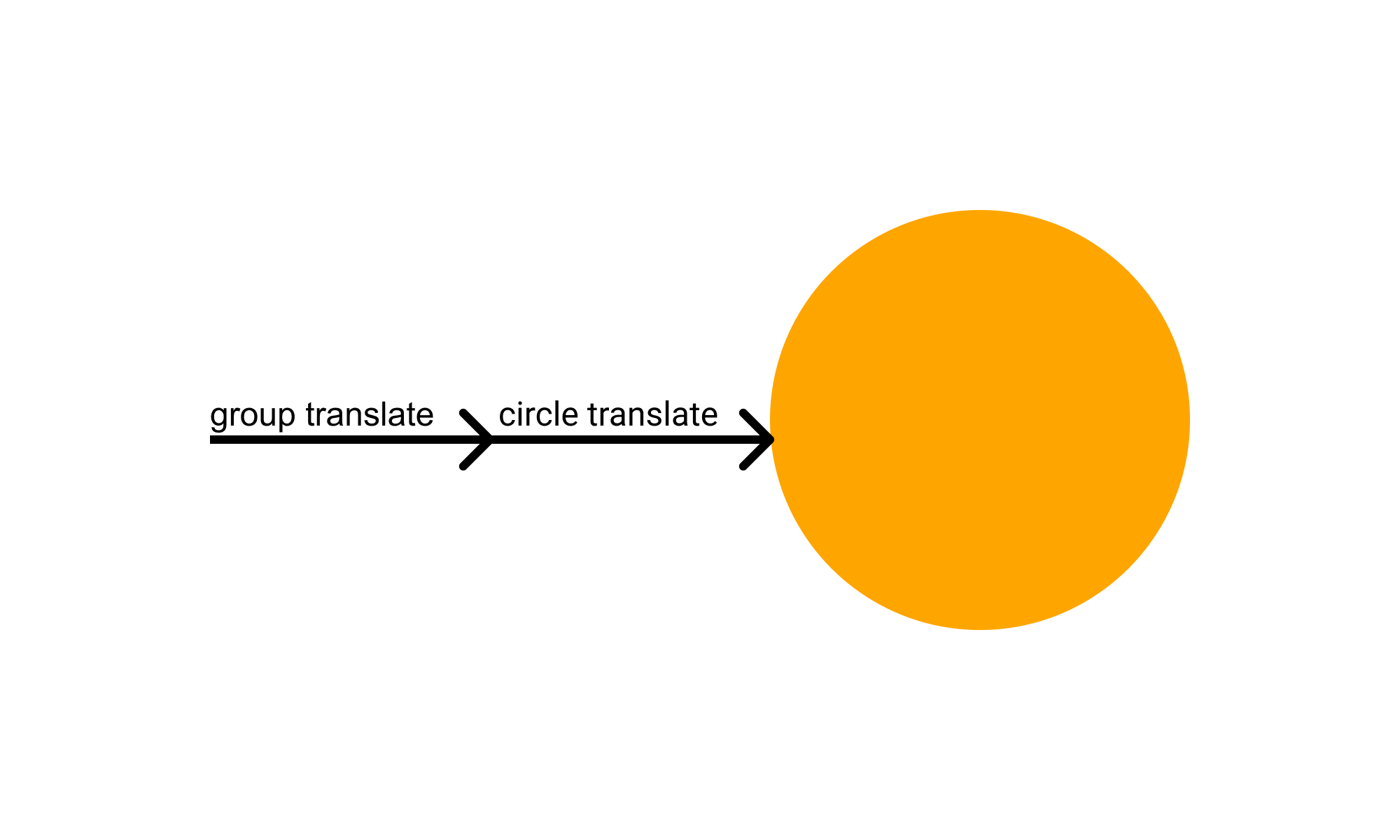

Transforms are a bit different, in that transforms set on a group are applied to all the child elements. The transforms are cumulative, and aren’t overridden like presentation attributes.
1
2
3
4
5
<g transform="translate(100, 0)" fill="orange" >
<circle
transform="translate(100, 0)"
cx="145" cy="250" r="50" />
</g>
groups and readability
Groups also make svg code more readable by allowing for the collection of logically related elements.
1
2
3
4
5
6
7
8
9
10
<g id="tree">
<g id="leaves" fill="green">
<circle cx="145" cy="250" r="10"/>
<circle cx="115" cy="250" r="20"/>
<!-- more leaves -–>
</g>
<g id="branches">
<!-- more branches -–>
</g>
</g>
