Text
codepen practice pageThe text element
You can add text to your SVG using… the text element. In the example below the browser will apply the font-family css styles defined for the containing page.
1
2
3
4
5
6
<svg
width="500"
height="500"
viewBox="0 0 500 500"
<text x="50" y="250">This is the text element</text>
</svg>font-size, font-family, and font-weight
The SVG font-size, font-family, and font-weight attributes should be familiar to anyone who has used CSS. We can, in fact use CSS instead of presentation attributes to style text elements, if we so choose. We'll discuss that in a later section.
1
2
3
4
5
6
7
8
<text
x="65"
y="250"
font-size="50"
font-family="Arial, Helvetica, sans-serif"
font-weight="normal">
The text element
</text>y, dominant-baseline

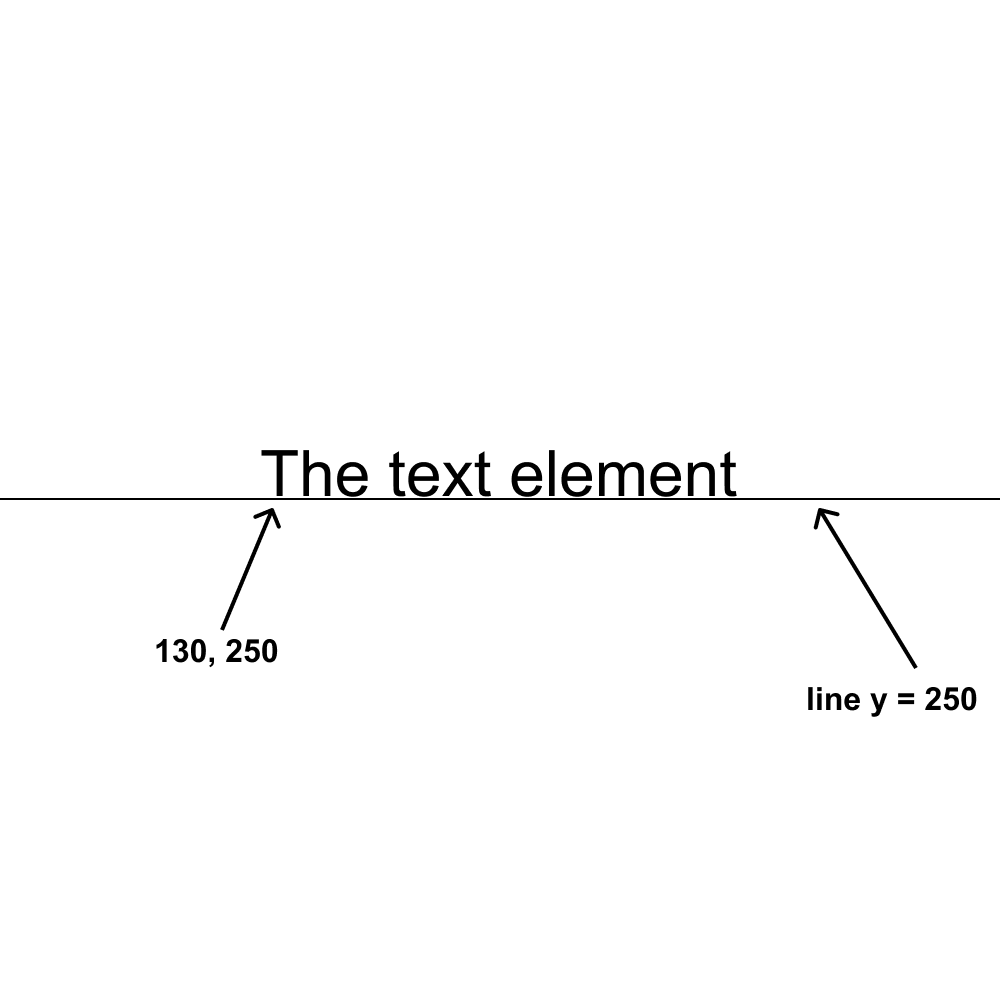

The y attribute is used to position the text relative to its dominant-baseline, which is, by default, directly under the text. In the image below the dominant baseline is represented by the black line.
1
2
3
4
5
6
7
<text
x="65" y="100"
dominant-baseline="auto"
fill="black"
font-family="Arial" font-size="32">
The text element
</text>
There are three possible values for dominant-baseline: auto (baseline is at the bottom), middle (baseline is in the middle), and hanging (baseline is at the top). In this example I've created horizontal lines at the same y value as the text to show how dominant-baseline affects the text position.
dominant-baseline: "auto" (under the text) | "middle" | "hanging"
x, text-anchor
The text-anchor attribute is used to set the horizontal alignment of the text element. By default the x attribute positions the text element horizontally using it's left edge. Each of the three text elements below has the same x position (250, the middle of the svg), but different text-anchor positions.
text-anchor: "auto" (start) | "middle" | "end
1
2
3
4
5
6
7
<text
x="250" y="250"
fill="black"
fontSize="30"
textAnchor="middle">
text-anchor middle
</text>tspan
The tspan element allows you apply formatting or change the position of individual sections of text within the text element.
1
2
3
4
5
6
7
8
9
10
11
<text
x="250" y="250"
text-anchor="middle"
font-size="35"
fill="black">
styling
<tspan fill="red" fontSize="45">
with
</tspan>
tspan
</text>tspan - x, y
The x, y attributes allow for “absolute” positioning of the tspan. However, you'll need to be careful - any text that follows the tspan will also have this new positioning, as TSPAN has in the example below, even though it sits outside the tspan element!
1
2
3
4
5
6
7
8
9
10
11
12
13
<text
x="250" y="250"
text-anchor="middle"
font-size="35"
fill="black">
styling
<tspan
x="100" y="50"
fill="red">
with
</tspan>
TSPAN
</text>tspan dx, dy
The dx, dy attributes relatively moves tspan text from where it would normally be. In this example below the text has been shifted vertically from the rest of the text element.
1
2
3
4
5
6
7
8
9
10
11
12
13
<text
x="250" y="250"
text-anchor="middle"
font-size="35"
fill="black" >
styling
<tspan
dx="0" dy="100"
fill="red">
with
</tspan>
TSPAN
</text>tspan - rotate
The rotate attribute allows for the rotation of the tspan text.
1
2
3
4
5
6
7
8
9
10
11
12
13
<text
x="250" y="250"
text-anchor="middle"
font-size="35"
fill="black" >
styling
<tspan
fill="red"
rotate="25">
with
</tspan>
TSPAN
</text>You can rotate individual characters by passing in a series of rotation values. Make sure to pass in the same number of values as there are characters in the tspan.
1
2
3
4
5
6
7
8
9
10
11
12
13
<text
x="250" y="250"
text-anchor="middle"
font-size="35"
fill="black" >
styling
<tspan
fill="red"
rotate="-25 0 25 90">
with
</tspan>
TSPAN
</text>textpath
The textpath element allows you to connect your text to the shape of a path.
First, you'll need a path you want your text to wrap around, and some text.
1
2
3
4
<path
d="M37.5 159.5C149.1 158.7 179.333 324.5 180.5 407.5L239 90.5L312 407.5C308.667 319.833 325.7 147.5 420.5 159.5"
stroke="#000"
stroke-width="2" />1
2
3
4
5
6
7
<text
x="0"
y="150"
font-size="16"
fill="black">
Lorem ipsum dolor sit amet consectetur adipisicing elit..
</text>Give the path element an id - we'll use mypath for this example.
<path
id="mypath"
d="M37.5 159.5C149.1...
Enclose the text you want to wrap in the textPath element, and pass in the id of the path in the href attribute. It will look something like this:
<text>
<textpath href="#mypath">
Lorem ipsum dolor sit amet consectetur adipisicing elit..
</textpath>
</text>
You can hide the path by just setting the stroke attribute to "none"
1
2
3
4
5
<path
id="mypath"
d="M37.5 159.5C149.1 158.7 179.333 324.5 180.5 407.5L239 90.5L312 407.5C308.667 319.833 325.7 147.5 420.5 159.5"
stroke="none"
/>startOffset
You can change the start point of the text along the path by using the startOffset attribute, and passing in a percentage value. (The percentage is that of the total length of the path)
1
2
3
<textPath
startOffset="10%"
href="#thebigw">sample text...</textPath>CSS styling
Setting the font-family of svg text is no different than doing so for any other text in your html page. For example, if you set the body text for your document to serif, it will also be applied to your svg text
1
2
3
body {
font-family: serif;
}1
2
3
text {
font-family: serif;
}1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
<svg width="500" height="200" viewbox="0 0 500 200">
<style>
.text-style {
font-family: serif;
font-size: 100px;
font-weight: bold;
fill: #eaeaea;
stroke: #212121;
stroke-width: 2;
}
</style>
<text
class="text-style"
x="250" y="100"
text-anchor="middle">css styling</text>
</svg>
foreignObject
SVG text doesn't wrap. You can solve this by wrapping html text with foreignObject element within your svg.
1
2
3
4
5
6
7
<svg width="500" height="500" viewbox="0 0 500 500">
<foreignObject x="125" y="100" width="250" height="160">
<div xmlns="http://www.w3.org/1999/xhtml">
This is text that wraps. You need to put it in a <strong>foreignObject</strong> tag and include the namespace for it to work!
</div>
</foreignObject>
</svg>
