use
codepen practice pagethe use element
You don’t always have to create new shapes from scratch. It’s possible to re-use existing objects

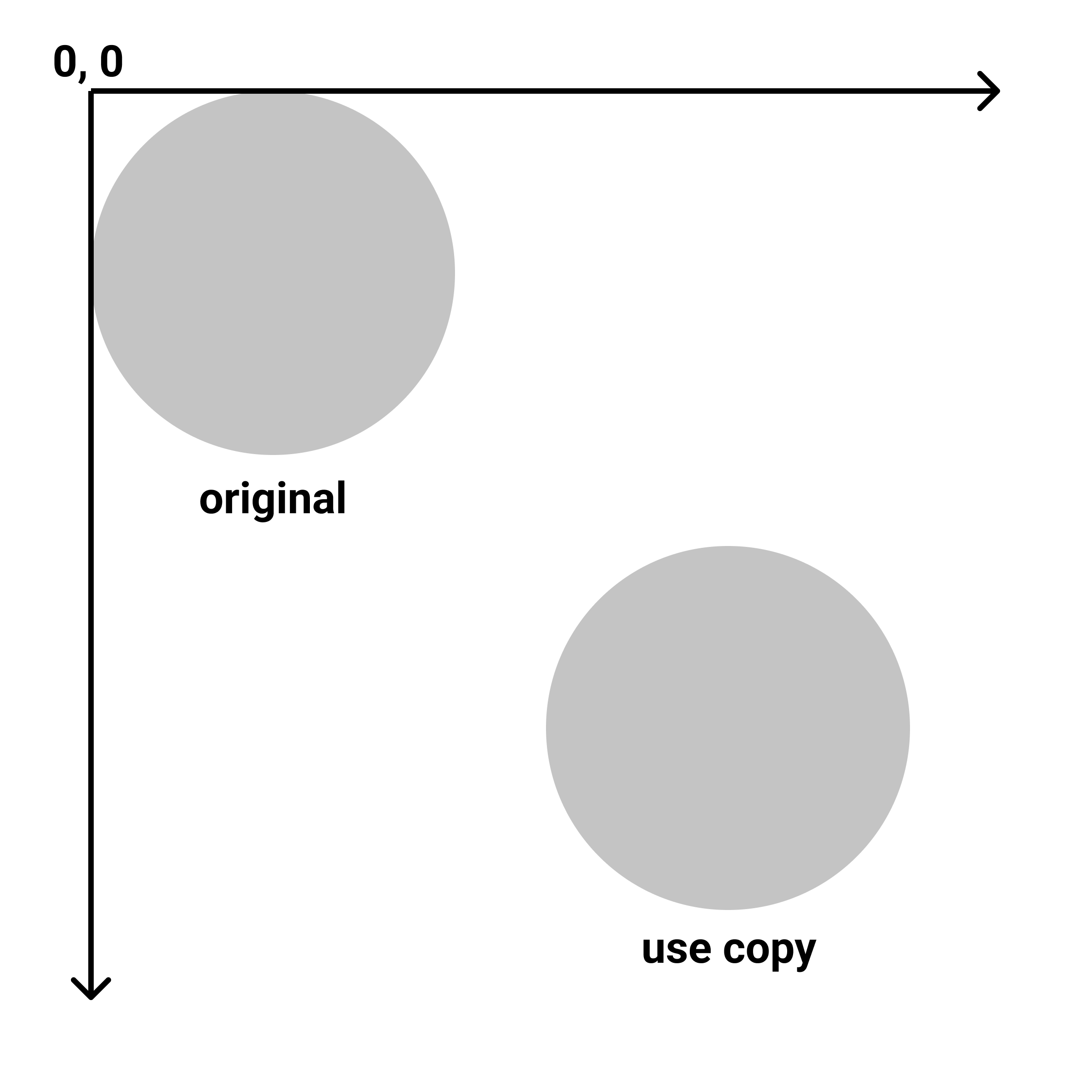

The use element allows you to "copy" and reuse other svg elements.
1
2
3
4
5
6
7
8
<circle
id="dot"
cx="100" cy="100" r="100"
fill="#C4C4C4" />
<use
href="#dot"
x="250" y="250">
</use>
use attributes
- href the id of the object being used - in this case, the circle element.
- x, y The x and y attributes are required, and are used to set the position of the use element.

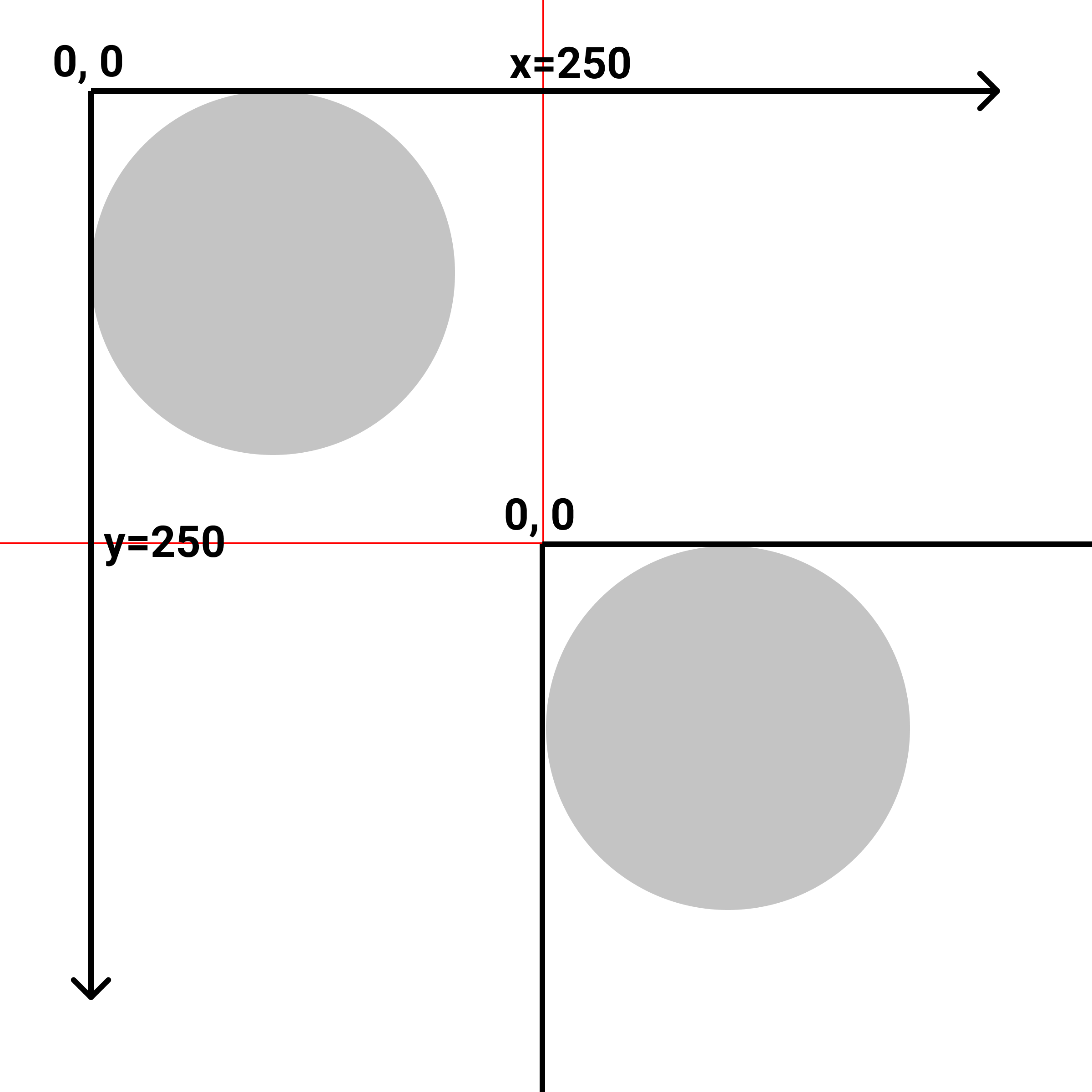

The confusing part: x and y don’t designate the actual position of the graphic. The x and y attributes set the position of the origin (the 0,0 point) of the <use> object’s coordinate system. The origin of the <use> object is set to the 250, 250 point of the svg’s coordinate system.
You can also use presentation attributes to set the <use> element's appearance. You can’t override the original presentation attributes, but you can set them if they haven’t already been set.

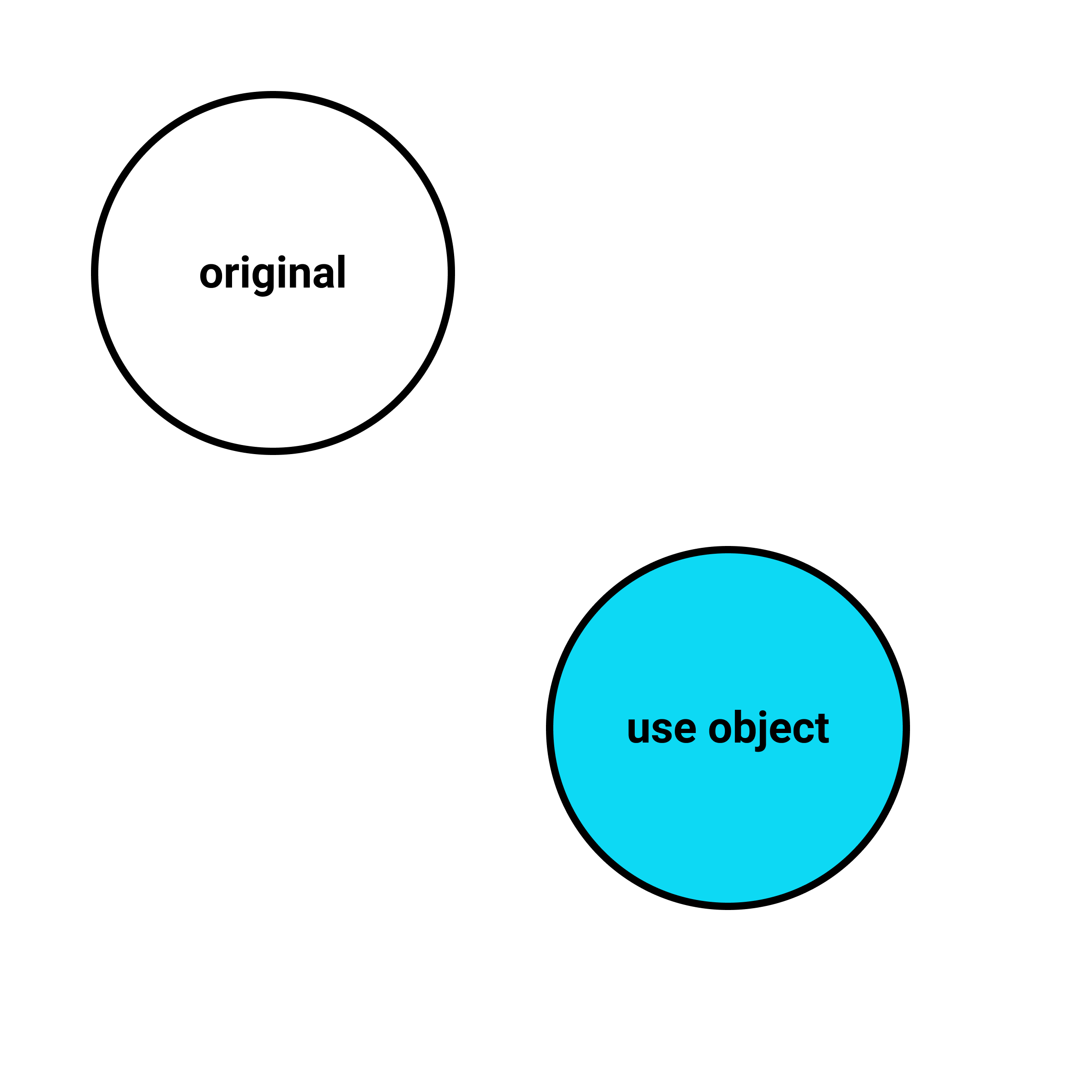

In the example below, the stroke and stroke-width attributes have been set in the original element, so they can’t be changed in the <use> object. The fill attribute isn’t used in the original, so it can be set in the <use> element.
1
2
3
4
5
6
7
8
<circle
id="dot"
cx="100" cy="100" r="100"
stroke="black" stroke-width="4" />
<use
href="#dot"
x="250" y="250"
fill="#0DD9F4"/>
Attempts to override presentation attributes of the original are simply ignored by the browser.
